Copper Woven Wire Mesh

Copper Wire Mesh Description

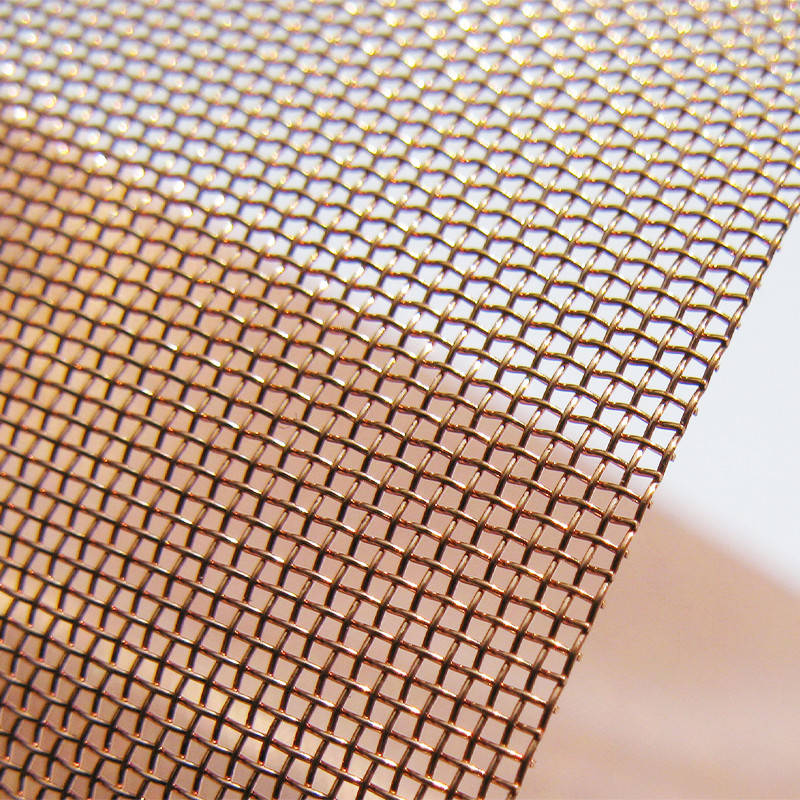

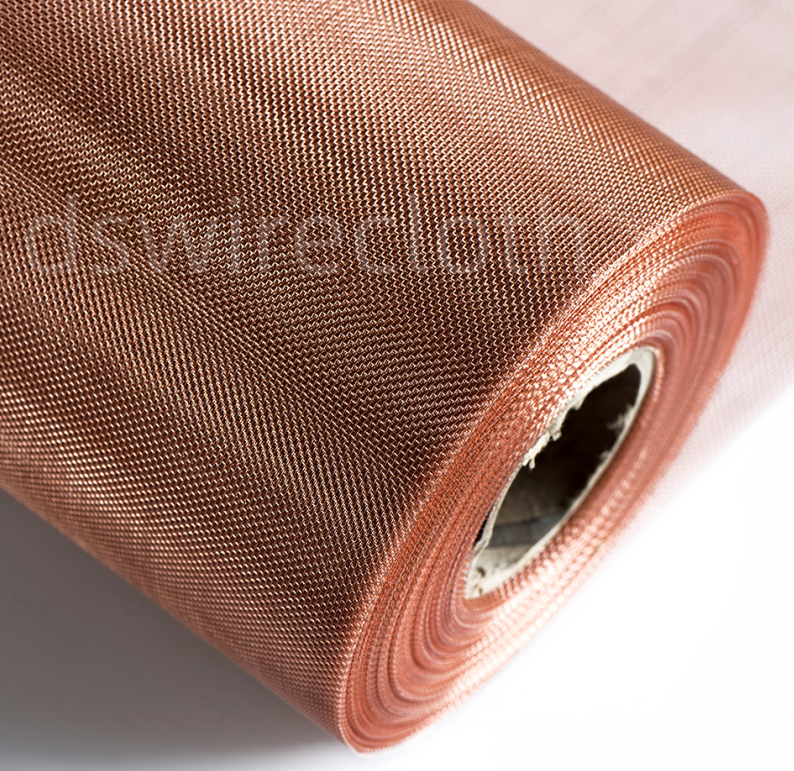

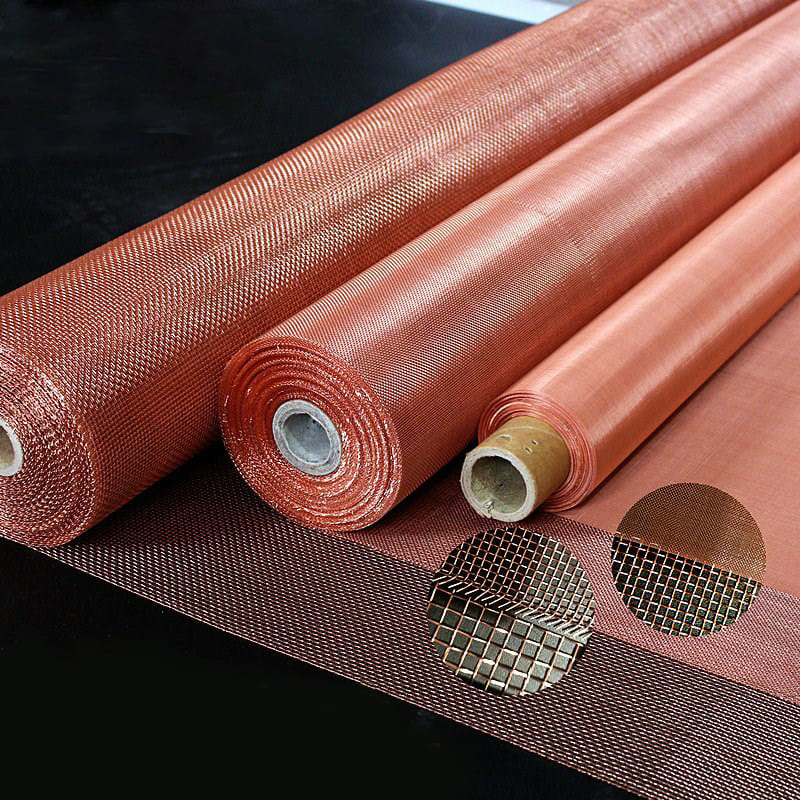

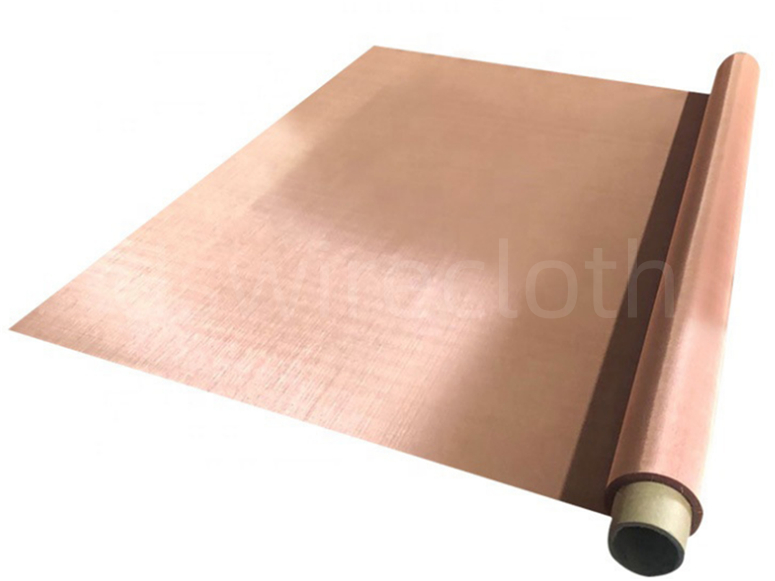

Pure copper woven wire mesh is made of copper wire and is made through a weaving process. It has shielding and filtering functions. Dashang Wire Mesh is a high-quality manufacturer of pure copper mesh, mainly producing and selling pure copper woven mesh with 10 mesh-350 mesh.Pure copper woven wire mesh usually uses copper wire as material, and the copper content reaches 99.95% or more, which ensures the conductivity and signal shielding effect of the product. The weaving process of this type of mesh material is mainly plain weaving, which makes the mesh surface uniform and the structure stable. Pure copper woven mesh has a variety of specifications, and the changes in aperture and mesh number enable it to adapt to different industrial needs. The higher the mesh number, the smaller the aperture, which can be used for finer filtering and shielding.

The following are the specifications of pure copper woven mesh commonly available in Dashang Wire Mesh:

Benefits of Copper Wire Mesh

Copper wire mesh offers a range of advantages that make it a versatile material for various industrial, mechanical, and decorative applications. While its abrasion resistance, hardness, and tensile strength may not surpass those of bronze wire cloth and brass wire cloth, its exceptional properties set it apart in numerous environments.

- Superior Corrosion Resistance

  Copper wire mesh demonstrates outstanding resistance to corrosion, making it durable in challenging environments such as atmospheric exposure, seawater, and contact with non-oxidizing acids (e.g., hydrochloric acid, dilute sulfuric acid), alkalis, salt solutions, and organic acids (e.g., acetic acid, citric acid). This resistance is further enhanced by the formation of a protective oxide layer.

- High Purity Material

  Manufactured using 99.95% or higher pure copper wire, ensuring superior performance in demanding applications requiring consistency and quality.

- Thermal and Electrical Conductivity

  With conductivity second only to silver, copper wire mesh is a cost-effective solution for applications requiring high thermal and electrical efficiency.

- Ductility and Workability

  Copper wire mesh is highly ductile, flexible, and elastic, making it easy to process, weld, and install. Its malleability supports intricate designs and custom configurations.

- Durability and Maintenance-Free

  The inherent durability of copper wire mesh, combined with its minimal maintenance requirements, makes it a preferred choice for long-term use in mechanical, industrial, and architectural settings.

- High Melting Point and Fire Safety

  With a melting point of 1083°C (1981°F), copper wire mesh is a fire-resistant material that does not propagate flames through floors, walls, or ceilings. This makes it particularly suitable for architectural fire protection applications.

- 100% Recyclability

  Copper is fully recyclable, making copper wire mesh an environmentally friendly choice that aligns with sustainability goals in modern industries.

- Aesthetic Appeal

  The unique metallic hue of copper wire mesh adds an elegant and distinctive touch to decorative architectural designs, blending functionality with visual appeal.

What is Copper Wire Mesh Used For?

Pure copper mesh has the characteristics of non-magnetic, wear-resistant, fast heat transfer, good conductivity, and good sound insulation. It is widely used in shielding signals, mobile phone heat dissipation, Vapor Chamber, component heat dissipation, screening of various particles, powders, porcelain clay, glass, wall sound insulation, glass layer shielding, electromagnetic shielding, electronic display screens, broadcast communications, high-tech anti-electromagnetic interference engineering, tablet computer shielding radiators, computer LCD display components, and manufacturing copper powder copper tube internal heat dissipation components. High-tech anti-electromagnetic interference engineering commonly uses 60 mesh, 80 mesh, 100 mesh copper shielding mesh, 200 mesh copper mesh is generally used for tablet computer shielding radiators, computer LCD display components, and manufacturing copper powder copper tube internal heat dissipation components.

The electrical conductivity and thermal conductivity of pure copper are second only to silver. It is used in the electronics industry to shield electronic equipment and reduce electromagnetic interference. Pure copper has good corrosion resistance in the atmosphere, seawater, certain non-oxidizing acid-base salt solutions and a variety of organic acids (acetic acid, citric acid). It can also be used in the filtration process in the fields of petroleum and chemical industry to ensure the normal operation of related equipment and improve production efficiency. In the printing industry, pure copper wire woven mesh can also be seen, mainly used for precise control during the printing process. With the development of technology, the application of pure copper wire woven mesh in the fields of environmental protection and energy is also increasing, for example, as one of the important components in battery manufacturing.

Pure copper woven mesh plays a key role in many industries with its unique material and weaving process. From shielding of electronic products to industrial filtration, to the support of printing technology, its wide range of application fields and market demand reflects the diversity and importance of this product.

Dashang Wire Mesh has rich experience in weaving mesh, strict production control process and quality inspection system, and the pure copper woven mesh produced has been exported to South Korea, Russia, France, Poland, Mexico and other countries. If you have any needs for pure copper mesh, please contact us as soon as possible!
